Appendix  The use of combined signals

System L and System N mixed

Use of proceed aspect 6

• Dividing station tracks into sections
• Replacing an exit distant signal

Dividing station tracks into sections

For this purpose the proceed aspect 6 was originally developped.

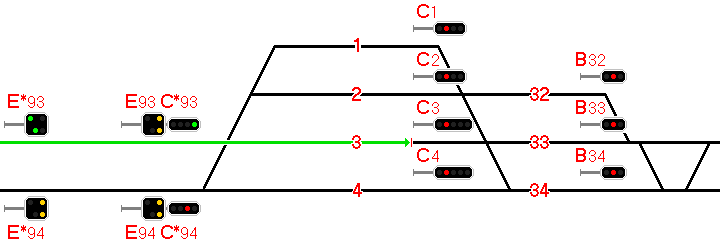

Normal entry

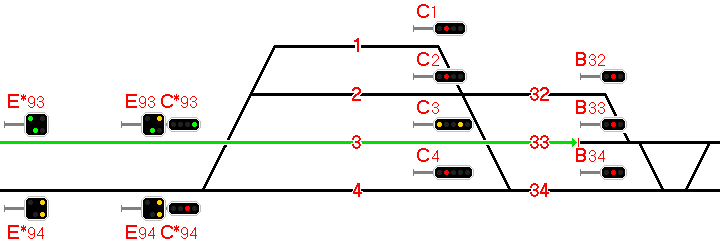

Long entry

Replacing an exit distant signal

The proceed aspect 6 at the entry signal announces the stop aspect of the exit signal. Such a signalling can only be found on secondary or narrow gauge lines and is in fact rather rare.

Normal position

Free entry - stop at exit signal

Go through

Appendix  The use of combined signals

System L and System N mixed
